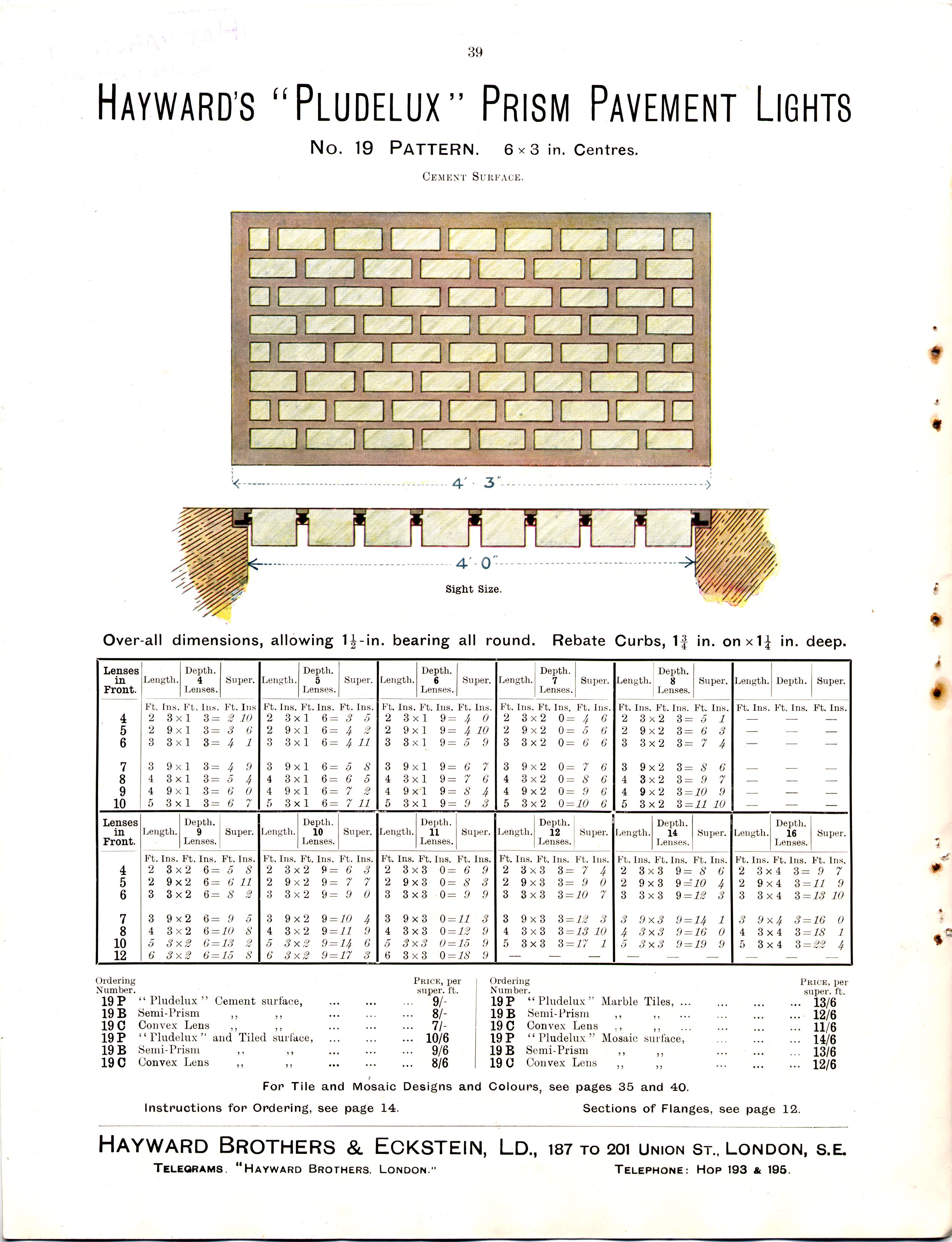

Page 39

Page 39 (300 DPI)


HAYWARD'S "PLUDELUX" PRISM PAVEMENT LIGHTS

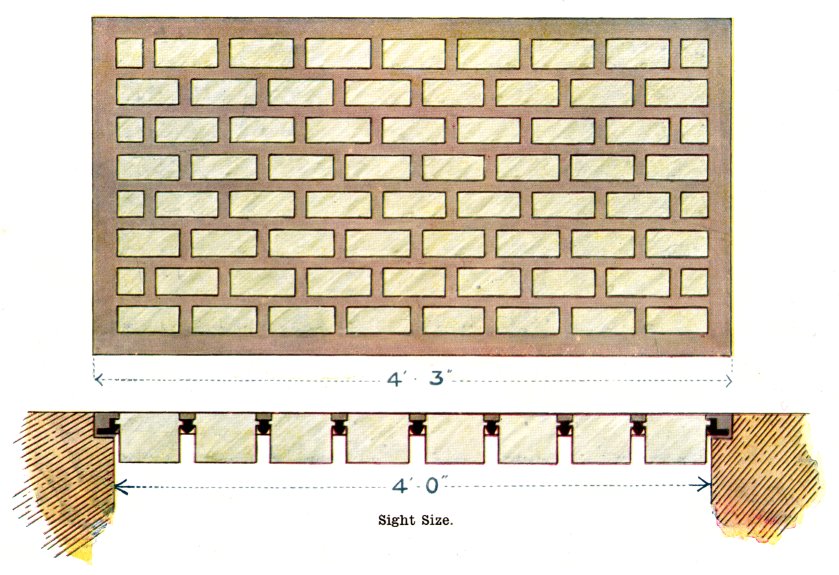

No. 19 PATTERN.      6 × 3 in. Centres.
Hayward's "Pludelux" Prism Pavement Lights, No. 19
Over-all dimensions, allowing 1½-in. bearing all round. Rebate Curbs, 1¾ in. on × 1¼ deep.
Lenses
in
Front		 Length Depth
4 Lenses		 Super Length Depth
5 Lenses		 Super Length Depth
6 Lenses		 Super Length Depth
7 Lenses		 Super Length Depth
8 Lenses		 Super
' " ' " ' " ' " ' " ' " ' " ' " ' " ' " ' " ' " ' " ' " ' "
4 2 3 × 1 3 = 2 10 2 3 × 1 6 = 3 5 2 3 × 1 9 = 4 0 2 3 × 2 0 = 4 6 2 3 × 2 3 = 5 1
5 2 9 × 1 3 = 3 6 2 9 × 1 6 = 4 2 2 9 × 1 9 = 4 10 2 9 × 2 0 = 5 6 2 9 × 2 3 = 6 3
6 3 3 × 1 3 = 4 1 3 3 × 1 6 = 4 11 3 3 × 1 9 = 5 9 3 3 × 2 0 = 6 6 3 3 × 2 3 = 7 4
7 3 9 × 1 3 = 4 9 3 9 × 1 6 = 5 8 3 9 × 1 9 = 6 7 3 9 × 2 0 = 7 6 3 9 × 2 3 = 8 6
8 4 3 × 1 3 = 5 4 4 3 × 1 6 = 6 5 4 3 × 1 9 = 7 6 4 3 × 2 0 = 8 6 4 3 × 2 3 = 9 7
9 4 9 × 1 3 = 6 0 4 9 × 1 6 = 7 2 4 9 × 1 9 = 8 4 4 9 × 2 0 = 9 6 4 9 × 2 3 = 10 9
10 5 3 × 1 3 = 6 7 5 3 × 1 6 = 7 11 5 3 × 1 9 = 9 3 5 3 × 2 0 = 10 6 5 3 × 2 3 = 11 10
Lenses
in
Front		 Length Depth
9 Lenses		 Super Length Depth
10 Lenses		 Super Length Depth
11 Lenses		 Super Length Depth
12 Lenses		 Super Length Depth
14 Lenses		 Super Length Depth
16 Lenses		 Super
' " ' " ' " ' " ' " ' " ' " ' " ' " ' " ' " ' " ' " ' " ' " ' " ' " ' "
4 2 3 × 2 6 = 5 8 2 3 × 2 9 = 6 3 2 3 × 3 0 = 6 9 2 3 × 3 3 = 7 4 2 3 × 3 9 = 8 6 2 3 × 4 3 = 9 7
5 2 9 × 2 6 = 6 11 2 9 × 2 9 = 7 7 2 9 × 3 0 = 8 3 2 9 × 3 3 = 9 0 2 9 × 3 9 = 10 4 2 9 × 4 3 = 11 9
6 3 3 × 2 6 = 8 2 3 3 × 2 9 = 9 0 3 3 × 3 0 = 9 9 3 3 × 3 3 = 10 7 3 3 × 3 9 = 12 3 3 3 × 4 3 = 13 10
7 3 9 × 2 6 = 9 5 3 9 × 2 9 = 10 4 3 9 × 3 0 = 11 3 3 9 × 3 3 = 12 3 3 9 × 3 9 = 14 1 3 9 × 4 3 = 16 0
8 4 3 × 2 6 = 10 8 4 3 × 2 9 = 11 9 4 3 × 3 0 = 12 9 4 3 × 3 3 = 13 10 4 3 × 3 9 = 16 0 4 3 × 4 3 = 18 1
10 5 3 × 2 6 = 13 2 5 3 × 2 9 = 14 6 5 3 × 3 0 = 15 9 5 3 × 3 3 = 17 1 5 3 × 3 9 = 19 9 5 3 × 4 3 = 22 4
12 6 3 × 2 6 = 15 8 6 3 × 2 9 = 17 3 6 3 × 3 0 = 18 9 — — — — — — — — —
Ordering
Number.		 PRICE, per
super. ft.		 Ordering
Number.		 PRICE, per
super. ft.
19 P "Pludelux" Cement surface, 9/- 19 P "Pludelux" Marble Tiles, 13/6
19 B Semi-Prism     "         "         "     8/- 19 B Semi-Prism     "         "         "     12/6
19 C Convex Lens   "         "         "     7/- 19 C Convex Lens   "         "         "     11/6
19 P "Pludelux" and Tiled surface, 10/6 19 P "Pludelux" Mosaic surface, 14/6
19 B Semi-Prism     "         "         "     9/6 19 B Semi-Prism     "         "         "     13/6
19 C Convex Lens   "         "         "     8/6 19 C Convex Lens   "         "         "     12/6
For Tile and Mosaic Designs and Colours, see pages 35 and 40.
Instructions for Ordering, see page 14. Sections of Flanges, see page 12.
