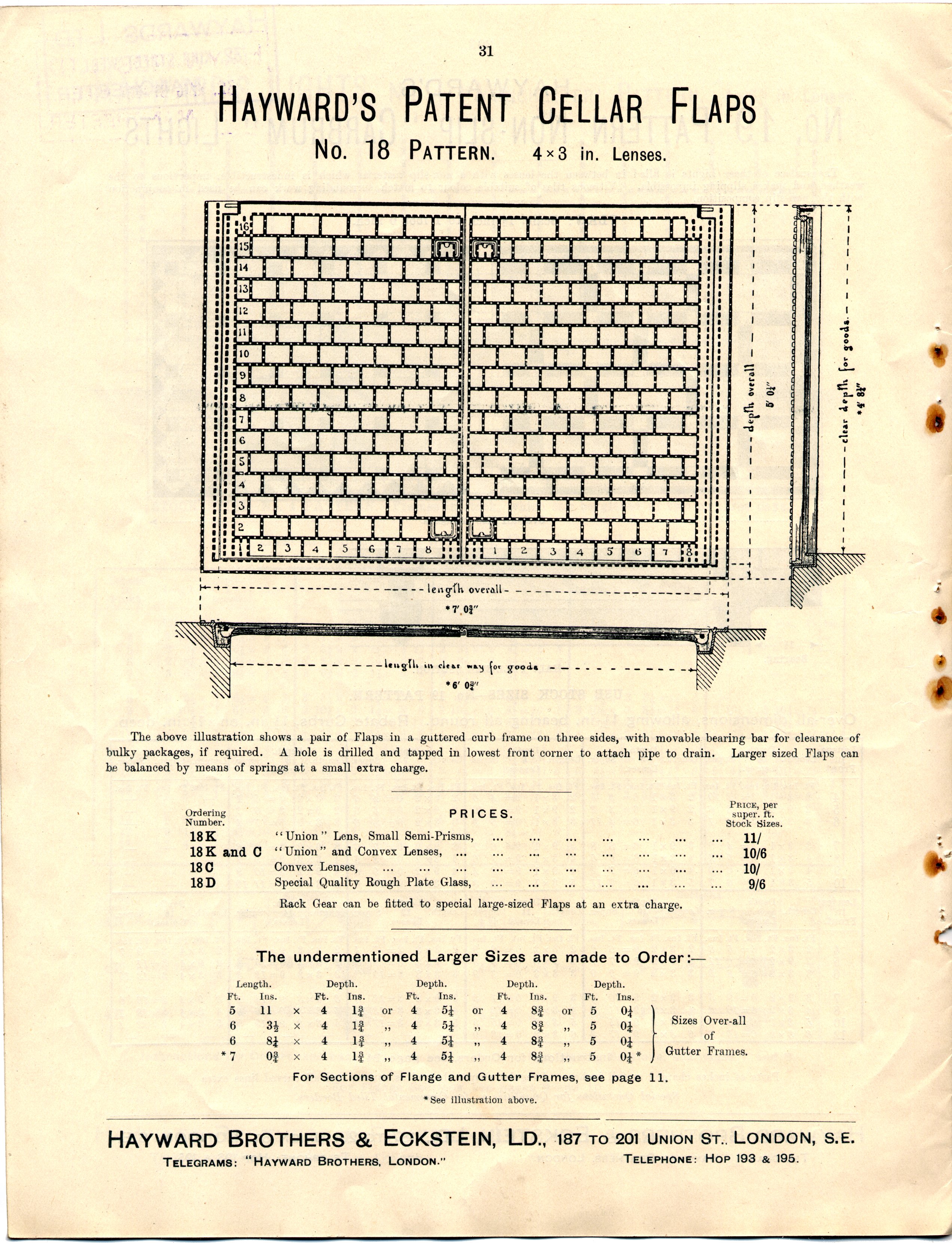

Page 31

Page 31 (300 DPI)


HAYWARD'S PATENT CELLAR FLAPS
NO. 18 PATTERN.      4  ×  3 in. Lenses

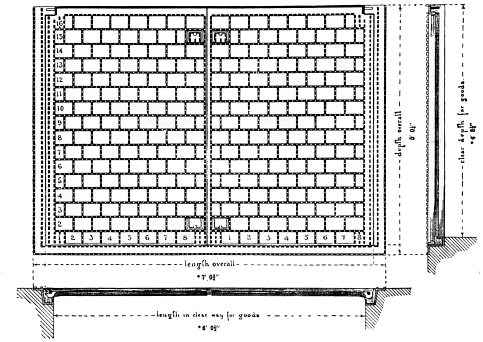

Hayward's Patent Cellar Flaps, No. 18 Pattern

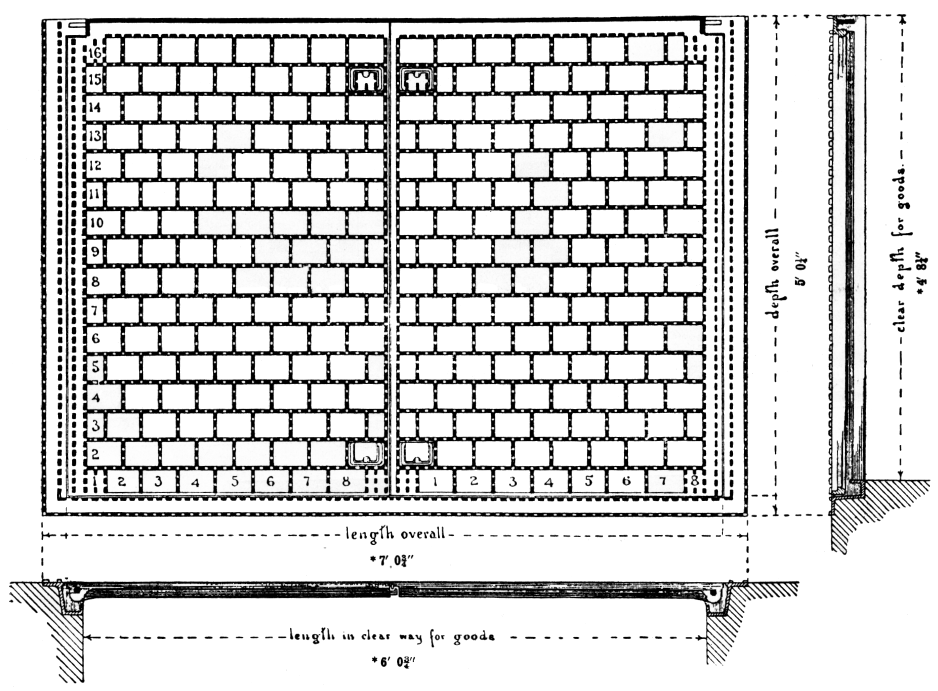

The above illustration shows a pair of Flaps in a guttered curb frame on three sides, with moveable bearing bar for clearance of bulky packages, if required. A hole is drilled and tapped in lowest front corner to attach pipe to drain. Larger sized Flaps can be balanced by means of springs at a small extra charge.
Ordering
Number		 PRICES. Price, per
super. ft.
Stock Sizes.
18 K "Union" Lens, Small Semi-Prisms, 11/
18 K and C "Union" and Convex Lenses, 10/6
18 C Convex Lenses, 10/
18 D Special Quality Rough Plate Glass, 9/6
Rack Gear can be fitted to special large-sized Flaps at an extra charge.
The undermentioned Larger Sizes are made to Order:—
Length Depth Depth Depth Depth
Ft. Ins. Ft. Ins. Ft. Ins. Ft. Ins. Ft. Ins.
5 11  ×  4 1¾   or   4 5¼   or   4 8¾   or   5 0¼ Sizes Over-all
of
Gutter Frames
6 3½  ×  4 1¾ " 4 5¼ " 4 8¾ " 5 0¼
6 8¼  ×  4 1¾ " 4 5¼ " 4 8¾ " 5 0¼
7 0¾  ×  4 1¾ " 4 5¼ " 4 8¾ " 5 0¼
For Sections of Flange and Gutter Frames, see page 11.
