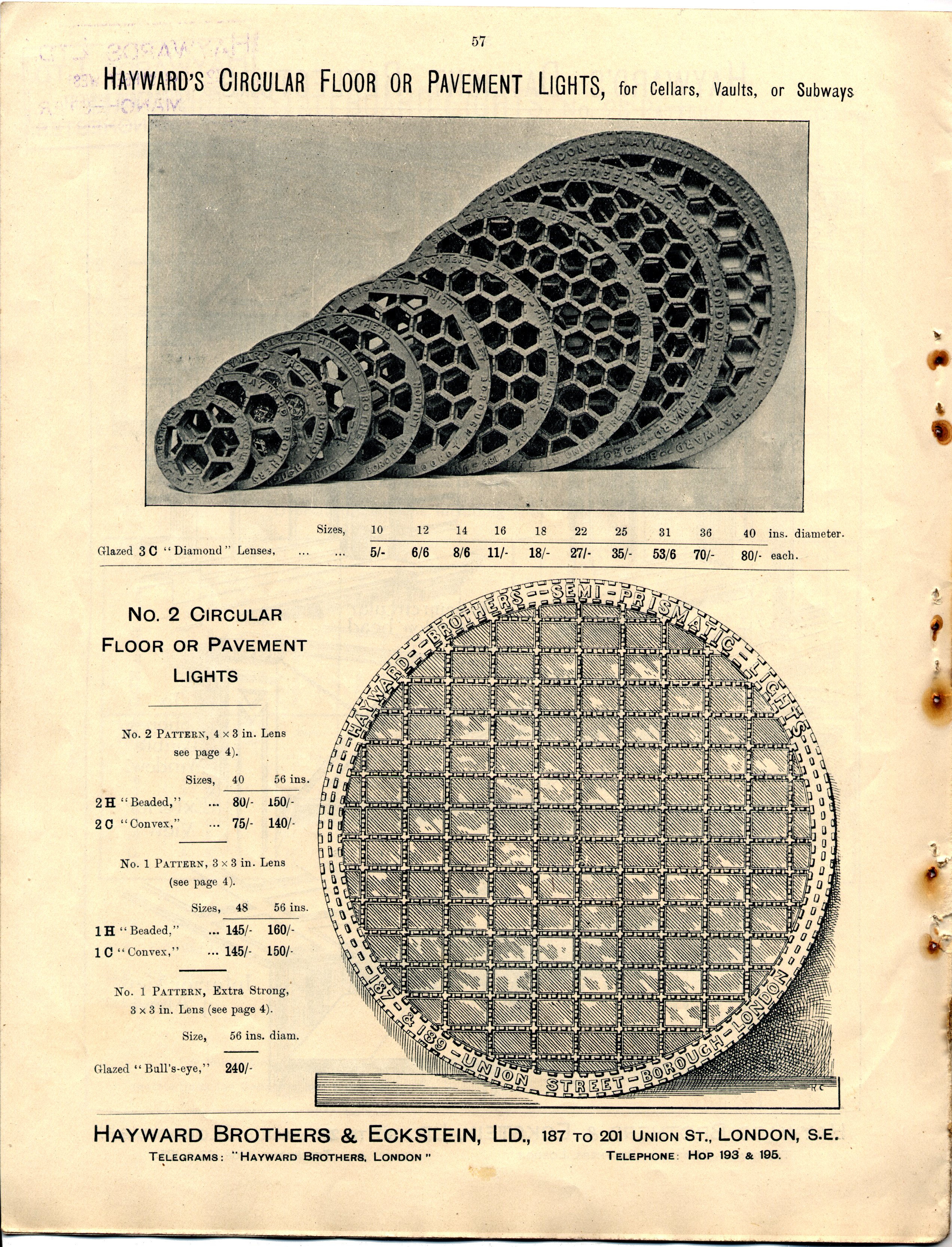

HAYWARD'S CIRCULAR FLOOR OR PAVEMENT LIGHTS,

for Cellars, Vaults, or Subways

Hayward's Circular Floor or Pavement Lights

	Sizes,	10	12	14	16	18	22	25	31	36	40	ins. diameter
Glazed 3 C "Diamond" Lenses,	... ...	5/-	6/6	8/6	11/-	18/-	27/-	35/-	53/6	70/-	80/-	each

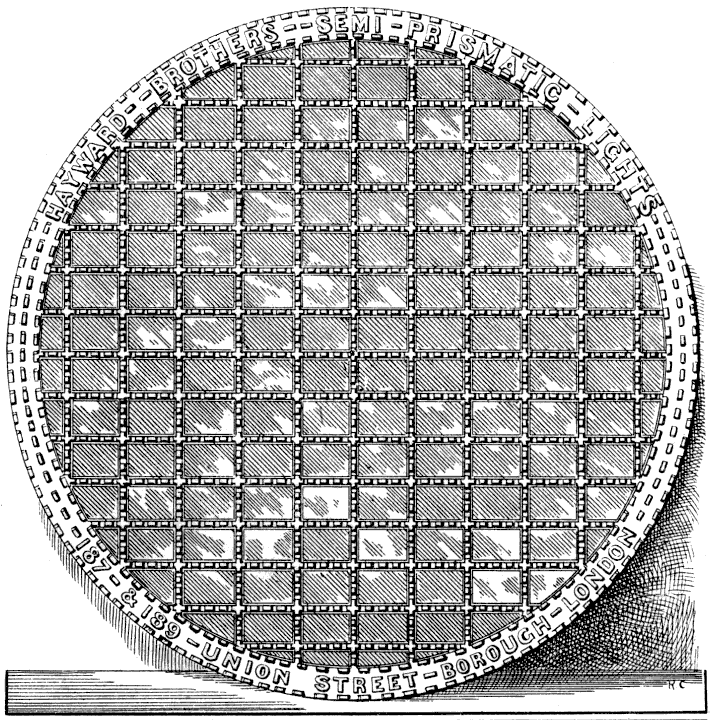

NO. 2 CIRCULAR FLOOR OR PAVEMENT LIGHTS,

No. 2 PATTERN, 4 × 3 in. Lens (see page 4).
		Sizes,	40	56	ins.
2 H	"Beaded,"	... ...	80/-	150/-
2 C	"Convex,"	... ...	75/-	140/-
No. 1 PATTERN, 3 × 3 in. Lens (see page 4).
		Sizes,	48	56	ins.
1 H	"Beaded,"	... ...	145/-	160/-
1 C	"Convex,"	... ...	145/-	150/-
No. 1 PATTERN, EXTRA STRONG, 3 × 3 in. Lens (see page 4).
		Size,	56	ins. diam.
Glazed "Bull's-eye,"			240/-

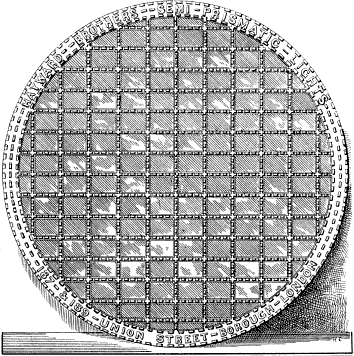

No. 2 Circular Floor or Pavement Light
