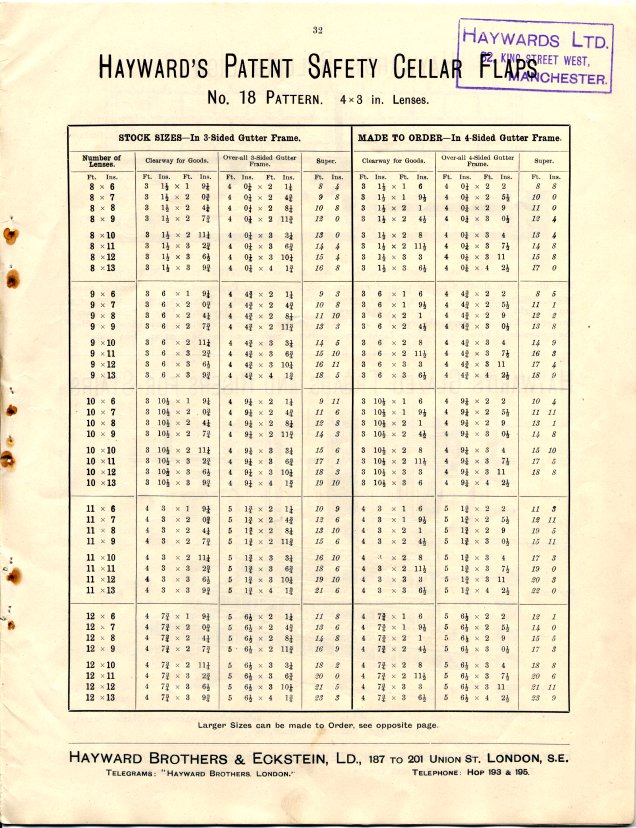

HAYWARD'S PATENT SAFETY CELLAR FLAPS
NO. 18 PATTERN.      4  ×  3 in. Lenses
  STOCK SIZES—In 3-Sided Gutter Frame.   MADE TO ORDER—In 4-Sided Gutter Frame.
Number of
Lenses		 Clearway for Goods Over-all 3-Sided Gutter
Frame		 Super Clearway for Goods Over-all 3-Sided Gutter
Frame		 Super
Ft. Ins. Ft. Ins. Ft. Ins. Ft. Ins. Ft. Ins. Ft. Ins. Ft. Ins. Ft. Ins. Ft. Ins. Ft. Ins. Ft. Ins.
8   × 6 3 1½ × 1 9¼ 4 0¼ × 2 1¼ 8 4 3 1½ × 1 6 4 0¼ × 2 2 8 8
8   × 7 3 1½ × 2 0¾ 4 0¼ × 2 4¾ 9 8 3 1½ × 1 9½ 4 0¼ × 2 5½ 10 0
8   × 8 3 1½ × 2 4¼ 4 0¼ × 2 8¼ 10 8 3 1½ × 2 1 4 0¼ × 2 9 11 0
8   × 9 3 1½ × 2 7¾ 4 0¼ × 2 11¾ 12 0 3 1½ × 2 4½ 4 0¼ × 3 0½ 12 4
8   × 10 3 1½ × 2 11¼ 4 0¼ × 3 3¼ 13 0 3 1½ × 2 8 4 0¼ × 3 4 13 4
8   × 11 3 1½ × 3 2¾ 4 0¼ × 3 6¾ 14 4 3 1½ × 2 11½ 4 0¼ × 3 7½ 14 8
8   × 12 3 1½ × 3 6½ 4 0¼ × 3 10¼ 15 4 3 1½ × 3 3 4 0¼ × 3 11 15 8
8   × 13 3 1½ × 3 9¾ 4 0¼ × 4 1¾ 16 8 3 1½ × 3 6½ 4 0¼ × 4 2½ 17 0
9   × 6 3 6 × 1 9¼ 4 4¾ × 2 1¼ 9 3 3 6 × 1 6 4 4¾ × 2 2 8 5
9   × 7 3 6 × 2 0¾ 4 4¾ × 2 4¾ 10 8 3 6 × 1 9½ 4 4¾ × 2 5½ 11 1
9   × 8 3 6 × 2 4¼ 4 4¾ × 2 8¼ 11 10 3 6 × 2 1 4 4¾ × 2 9 12 2
9   × 9 3 6 × 2 7¾ 4 4¾ × 2 11¾ 13 3 3 6 × 2 4½ 4 4¾ × 3 0½ 13 8
9   × 10 3 6 × 2 11¼ 4 4¾ × 3 3¼ 14 5 3 6 × 2 8 4 4¾ × 3 4 14 9
9   × 11 3 6 × 3 2¾ 4 4¾ × 3 6¾ 15 10 3 6 × 2 11½ 4 4¾ × 3 7½ 16 3
9   × 12 3 6 × 3 6½ 4 4¾ × 3 10¼ 16 11 3 6 × 3 3 4 4¾ × 3 11 17 4
9   × 13 3 6 × 3 9¾ 4 4¾ × 4 1¾ 18 5 3 6 × 3 6½ 4 4¾ × 4 2½ 18 9
10   × 6 3 10½ × 1 9¼ 4 9¼ × 2 1¼ 9 11 3 10½ × 1 6 4 9¼ × 2 2 10 4
10   × 7 3 10½ × 2 0¾ 4 9¼ × 2 4¾ 11 6 3 10½ × 1 9½ 4 9¼ × 2 5½ 11 11
10   × 8 3 10½ × 2 4¼ 4 9¼ × 2 8¼ 12 8 3 10½ × 2 1 4 9¼ × 2 9 13 1
10   × 9 3 10½ × 2 7¾ 4 9¼ × 2 11¾ 14 3 3 10½ × 2 4½ 4 9¼ × 3 0½ 14 8
10   × 10 3 10½ × 2 11¼ 4 9¼ × 3 3¼ 15 6 3 10½ × 2 8 4 9¼ × 3 4 15 10
10   × 11 3 10½ × 3 2¾ 4 9¼ × 3 6¾ 17 1 3 10½ × 2 11½ 4 9¼ × 3 7½ 17 5
10   × 12 3 10½ × 3 6½ 4 9¼ × 3 10¼ 18 3 3 10½ × 3 3 4 9¼ × 3 11 18 8
10   × 13 3 10½ × 3 9¾ 4 9¼ × 4 1¾ 19 10 3 10½ × 3 6½ 4 9¼ × 4 2½
11   × 6 4 3 × 1 9¼ 5 1¾ × 2 1¼ 10 9 4 3 × 1 6 5 1¾ × 2 2 11 3
11   × 7 4 3 × 2 0¾ 5 1¾ × 2 4¾ 12 6 4 3 × 1 9½ 5 1¾ × 2 5½ 12 11
11   × 8 4 3 × 2 4¼ 5 1¾ × 2 8¼ 13 10 4 3 × 2 1 5 1¾ × 2 9 19 5
11   × 9 4 3 × 2 7¾ 5 1¾ × 2 11¾ 15 6 4 3 × 2 4½ 5 1¾ × 3 0½ 15 11
11   × 10 4 2 × 2 11¼ 5 1¾ × 3 3¼ 16 10 4 3 × 2 8 5 1¾ × 3 4 17 3
11   × 11 4 3 × 3 2¾ 5 1¾ × 3 6¾ 18 6 4 3 × 2 11½ 5 1¾ × 3 7½ 19 0
11   × 12 4 3 × 3 6½ 5 1¾ × 3 10¼ 19 10 4 3 × 3 3 5 1¾ × 3 11 20 3
11   × 13 4 3 × 3 9¾ 5 1¾ × 4 1¾ 21 6 4 3 × 3 6½ 5 1¾ × 4 2½ 22 0
12   × 6 4 7¾ × 1 9¼ 5 6½ × 2 1¼ 11 8 4 7¾ × 1 6 5 6½ × 2 2 12 1
12   × 7 4 7¾ × 2 0¾ 5 6½ × 2 4¾ 13 6 4 7¾ × 1 9½ 5 6½ × 2 5½ 14 0
12   × 8 4 7¾ × 2 4¼ 5 6½ × 2 8¼ 14 8 4 7¾ × 2 1 5 6½ × 2 9 15 5
12   × 9 4 7¾ × 2 7¾ 5 6½ × 2 11¾ 16 9 4 7¾ × 2 4½ 5 6½ × 3 0½ 17 3
12   × 10 4 2 × 2 11¼ 5 6½ × 3 3¼ 18 2 4 7¾ × 2 8 5 6½ × 3 4 18 8
12   × 11 4 7¾ × 3 2¾ 5 6½ × 3 6¾ 20 0 4 7¾ × 2 11½ 5 6½ × 3 7½ 20 6
12   × 12 4 7¾ × 3 6½ 5 6½ × 3 10¼ 21 5 4 7¾ × 3 3 5 6½ × 3 11 21 11
12   × 13 4 7¾ × 3 9¾ 5 6½ × 4 1¾ 23 3 4 7¾ × 3 6½ 5 6½ × 4 2½ 23 9

Larger Sizes can be made to Order, see opposite page.
