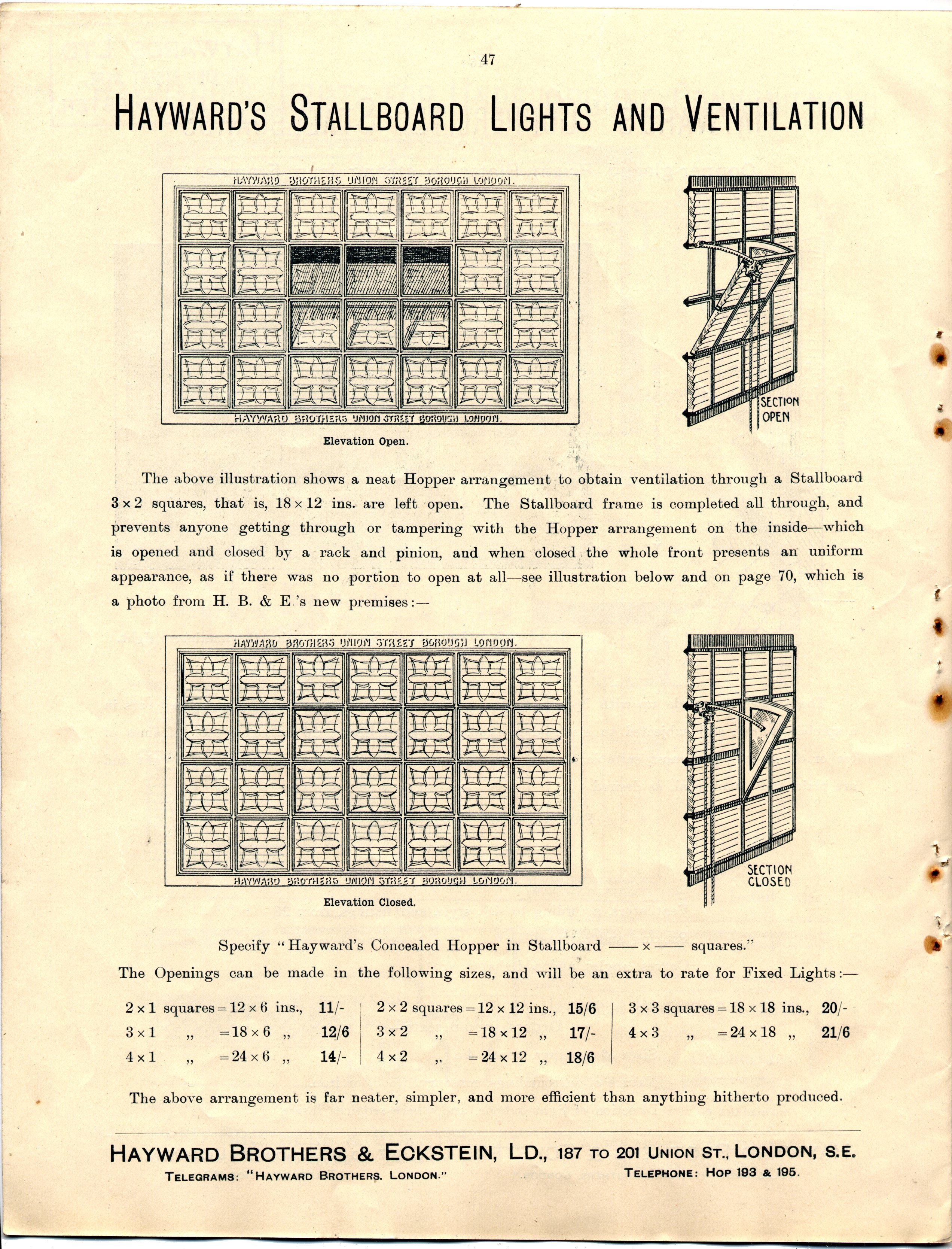

HAYWARD'S
STALLBOARD LIGHTS AND
VENTILATION

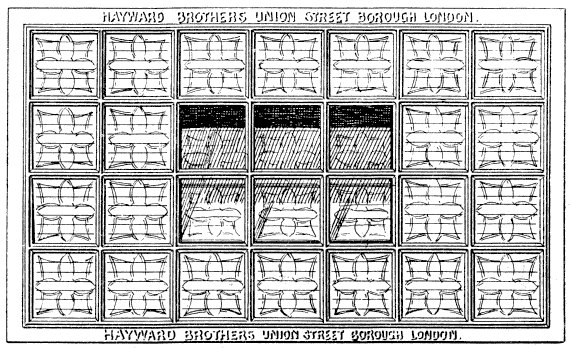

Elevation Open. |
 |

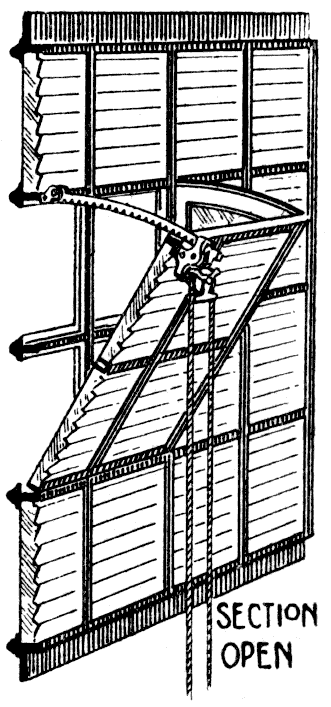

The above
illustration shows a neat Hopper arrangement to obtain ventilation
through a Stallboard 3 × 2 squares, that is, 18 × 12 ins.
are left open. The Stallboard frame is completed all through, and
prevents anyone getting through or tampering with the Hopper

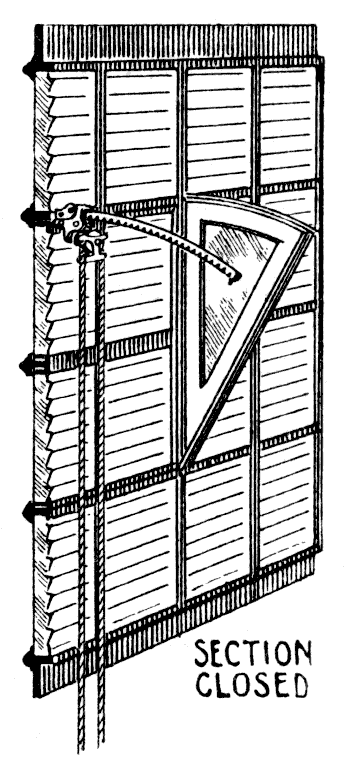

arrangement on the inside—which is opened and closed by a rack
and pinion, and when closed the whole front presents an uniform
appearance, as if there was no portion to open at all—see
illustration below and on page 70, which is a photo from H. B. &
E.'s new premises:—

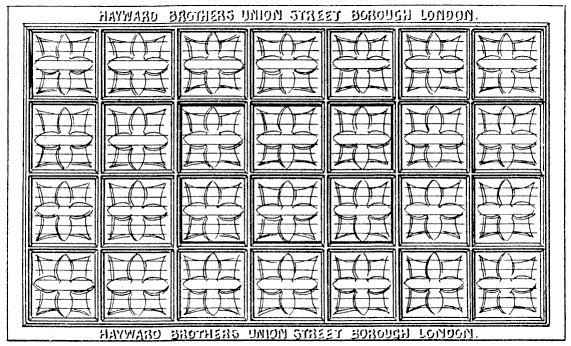

Elevation Closed. |
 |
Specify "Hayward's Concealed Hopper in Stallboard ____ × ____
squares."
The Openings can be made in the following sizes, and will be an extra to
rate for Fixed Lights:—
| 2 × 1 |
squares |
= |
12 × 6 |
ins., |
11/- |
| 2 × 2 |
squares |
= |
12 × 12 |
ins., |
15/6 |
| 3 × 3 |
squares |
= |
18 × 18 |
ins., |
20/- |
| 3 × 1 |
" |
= |
18 × 6 |
ins., |
12/6 |
3 × 2 |
" |
= |
18 × 12 |
ins., |
17/- |
4 × 3 |
" |
= |
24 × 18 |
ins., |
21/6 |
| 4 × 1 |
" |
= |
24 × 6 |
ins., |
14/- |
4 × 2 |
" |
= |
24 × 12 |
ins., |
18/6 |
The above arrangement is far neater, simpler,
and more efficient than anything hitherto produced.
HAYWARD BROTHERS &
ECKSTEIN, LD.,
187 to 201 UNION ST.,
LONDON, S.E.
|
TELEGRAMS: "HAYWARD
BROTHERS, LONDON"
|
TELEPHONE: HOP 193 & 195.
|
|
