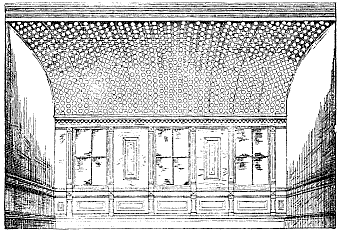

This engraving gives an inside view of the first
story rear extension, with curved roof.
Fig. E.
SKYLIGHTS

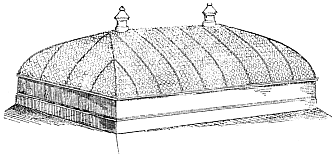

The above cut (Fig. E) shows a curved
hipped-skylight, with ventilators. It is applicable for stores,
art galleries, rotundas, etc.
Fig. F.
Fig. F represents a straight or flat hipped-skylight.
|
|
