HANDLED JUG.

regulated with the pucellas. The whole is re-warmed and made ready to receive the handle, which is prepared by the servitor, and consists of a long piece of soft Glass, A. It is allowed by its own gravity to fall and to weld on the upper part of the neck of the jug, B, exactly opposite the lip; great care being taken that the part receiving the handle is free from dust, or the sulphur which arises from burnt coal or damp wood, which would render the adhesion incomplete.
As soon as the handle welds firmly, it should be separated from the iron, F, sheared through;

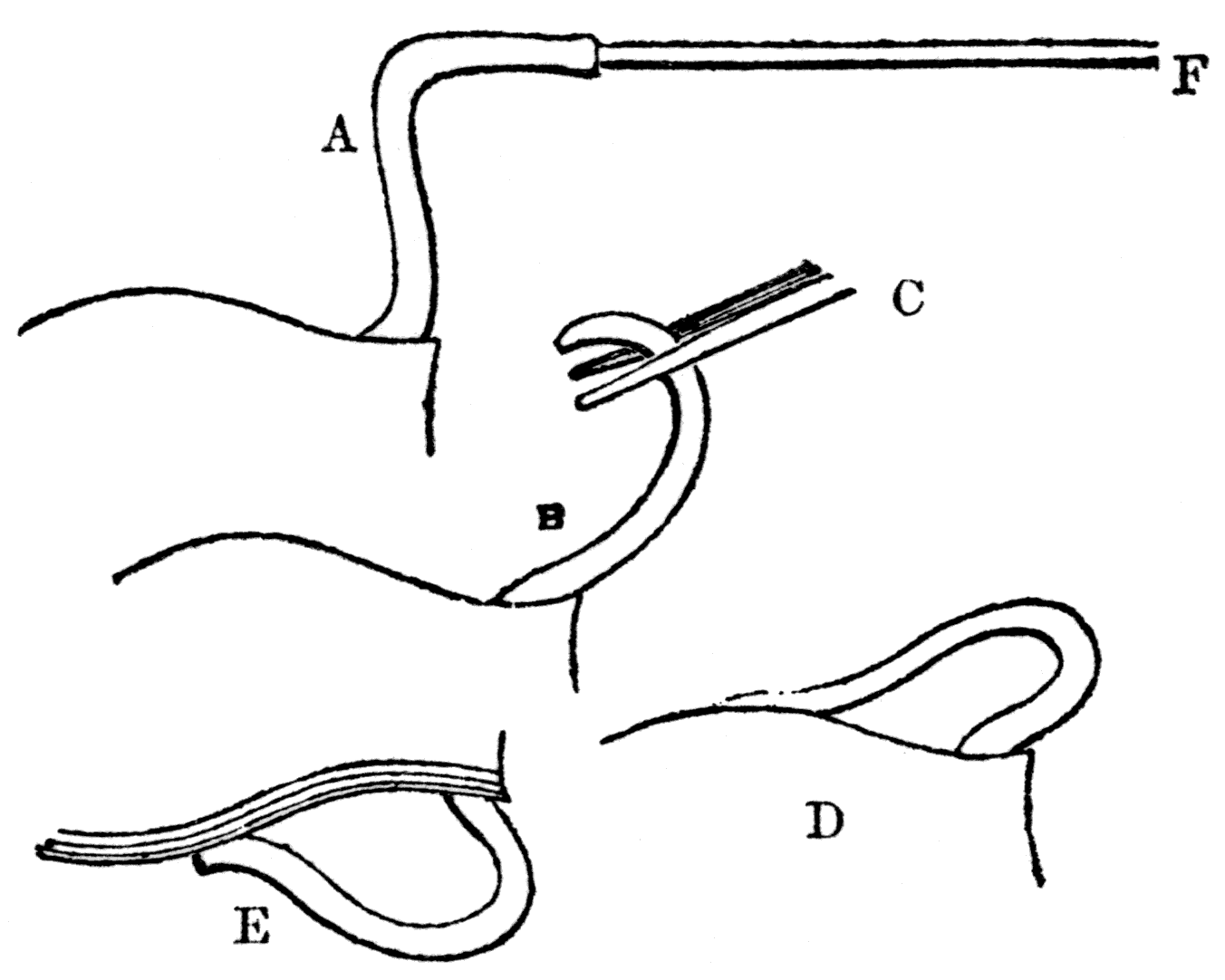

Handled jug.
and the workman instantly takes it with the pucellas, C, and throwing it a little back, and then forward, he slowly draws it back again, and gently presses the other end upon the lower part of the neck of the jug, D. When this part likewise adheres, the handle is shaped by rotating the jug and distending the handle by centrifugal motion, as E. The handle side is then turned upward, and the pucellas gives the finished form to the handle. The jug is, lastly, warmed all over, and placed in the lear for annealing. The adhering parts of the handle (technically called sticking parts) need gently pressing to assist the welding; and at each sticking operation, quick rotation f the jug and re-warming are essential.
